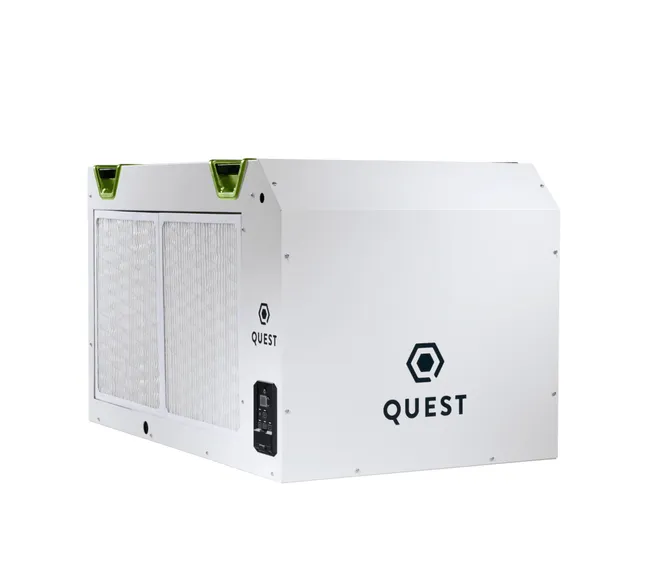

Quest 506 277V Dehumidifier - Ultimate Energy Efficiency

The Quest 506 277V is the world’s most energy-efficient dehumidifier, delivering a robust 500 pints/day capacity at an exceptional 9.2 pints/kWh efficiency (80°F, 60% RH). Featuring patented M-CoRR™ Technology and eco-friendly R454B refrigerant, this high-capacity unit is designed for commercial and industrial applications. Engineered and assembled in Madison, Wisconsin, it complies with California Title 24 requirements for ducted and non-ducted installations.

Key Features of the Quest 506 277V Dehumidifier

• Patented M-CoRR™ Technology: Multi-coil design ensures top-tier energy efficiency and reduced heat output.
• High Capacity: Removes 500 pints/day, perfect for large-scale environments.
• Low Amp Draw: Only 8.2 Amps at 277V, freeing up electrical capacity.
• Onboard Digital Controls: Adjustable RH setpoints, self-diagnostics, filter notifications, and Dark Mode for light-sensitive areas.
• MERV-13 Filtration: Removes dust, pollen, mold, bacteria, and some viruses for cleaner air.
• Streamlined Design: Compact, footless structure for overhead or tight-space installations.
• Wide Operating Range: Operates effectively from 56°F to 95°F.
• Auto Restart: Resumes prior settings after power outages.
• UL Rated & ETL Listed: Meets the highest safety standards.
• Environmentally Conscious Refrigerant: R454B with 78% lower GWP than traditional refrigerants.
• 5-Year Limited Warranty: Ensures long-term reliability.

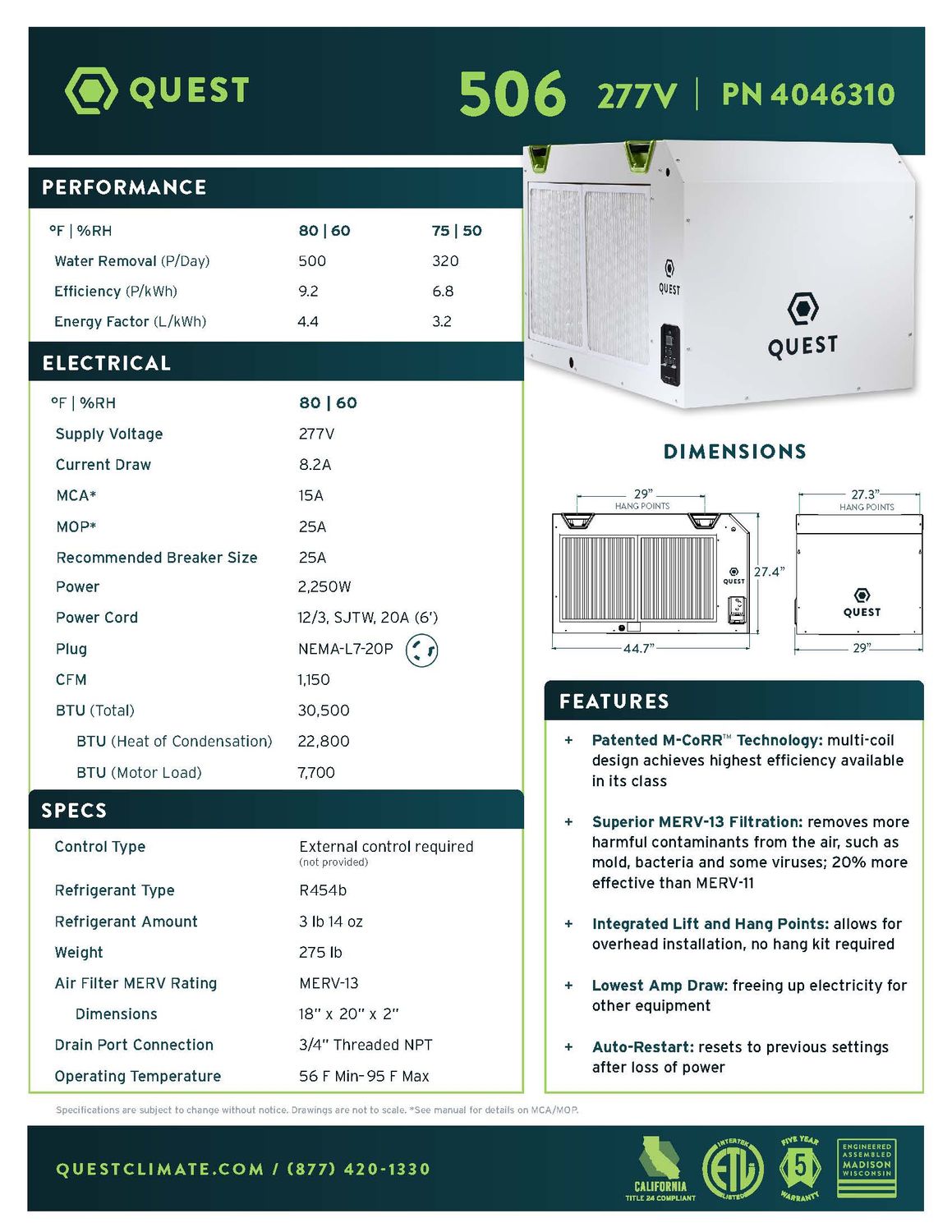

Technical Specifications

Why Choose the Quest 506 277V Dehumidifier?

The Quest 506 277V leads the industry with its unmatched 9.2 pints/kWh efficiency and low 8.2 Amp draw, eliminating the need for costly buck-boost transformers. Its compact, footless design fits tight spaces, while the eco-friendly R454B refrigerant reduces environmental impact by 78% compared to traditional options. Backed by a 5-year limited warranty, this unit ensures reliable, sustainable humidity control for large-scale applications.

Installation Options

The Quest 506 277V offers versatile installation:

• Freestanding: Ground-level setup for accessibility.
• Overhead: Mount with 3/8″ threaded rod for space-saving installation.
• P-Trap Requirements: Ensures proper drainage in all setups.

Applications

The Quest 506 277V is ideal for:

• Large commercial facilities
• Industrial environments
• Tight spaces and overhead installations
• High-capacity humidity control needs

Cost Savings

The Quest 506 277V outperforms competitors, offering significant savings over 5 years with a de-rated capacity of 205 gal/day compared to 190 gal/day for a competitor 710 model, reducing the need for additional units and lowering operating costs.
